Flash Demo Image

danger

Update UEFI firmware

When Jetpack version is changed, you also need to update UEFI firmware.
If UEFI firmware and system image are not matched, device can't boot up.
Please refer Update UEFI firmware from demo image

Flash demo image steps

1. Download TechNexion demo image:


   Demo image

   Product	Demo image
   TEK6100-ORIN-NX	NVMe TEK6100-ORIN-NX_JP6_ubuntu-22.04_hdmi_NVMe_diskimg.zip USB TEK6100-ORIN-NX_JP6_ubuntu-22.04_hdmi_USB_diskimg.zip
   TEK6040-ORIN-NANO	NVMe TEK6040-ORIN-NANO_JP6_ubuntu-22.04_hdmi_NVMe_diskimg.zip USB TEK6040-ORIN-NANO_JP6_ubuntu-22.04_hdmi_USB_diskimg.zip

   Make sure you download the image with the boot device you need.

   DRAM sku on TEK6100-ORIN-NX

   TEK6100-ORIN-NX has two DRAM sku, Micron and Hynix.
   After JetPack6.1(R36.4.0), system can automatically detect dram and bring up successfully.


2. Unzip the zip file
   You will get 3 files likes below:

   • Product_storage_disk.img.bz2
   • Product_storage_disk.img.bmap
   • Product_hostflash.tbz2

3. There two methods to update demo image:


   • Flash demo image on external storage, you may need to plug out boot storage.

   • Flash demo image on TEK device storage, you need prepare another USB storage.


Flash on external USB device

1. Connect the external storage to computer and flash to block device

   # get your storage block device, it maybe shown sdX
   $ lsblk -d
   sdb      8:16   0 232.9G  0 disk

   # umount block device. Based on above example, <BLOCK_DEVICE> is sdb
   $ sudo umount /dev/<BLOCK_DEVICE>?

   # flash demo image into block device
   $ sudo bmaptool copy <FILE.bz2> /dev/<BLOCK_DEVICE>
   NVMe storage

   We recommend using 'SSD Enclosure Adapter' to transform NVMe SSD to USB block device.

2. Plug the storage back to device and boot.

   Multiple storage connected

   Make sure you select the right boot device in NVIDIA UEFI stage.

Flash on TEK storage

1. Follow previous flash steps to prepare another bootable USB storage.
   Please make sure this bootable software version are matched currently UEFI firmware on device.


2. Plug USB to device
   Check block devices, you should find two bootable storage.
   For example, NVMe(nvme0n1) and USB(sda).


    $ lsblk -d
    NAME    MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
    loop0     7:0    0    16M  1 loop
    sda       8:0    0 232.9G  0 disk
    zram0   252:0    0   1.9G  0 disk [SWAP]
    zram1   252:1    0   1.9G  0 disk [SWAP]
    zram2   252:2    0   1.9G  0 disk [SWAP]
    zram3   252:3    0   1.9G  0 disk [SWAP]
    nvme0n1 259:0    0 232.9G  0 disk

   Currently, boot from NVMe.


    $ df -h
    Filesystem       Size  Used Avail Use% Mounted on
    /dev/nvme0n1p1   228G  7.4G  211G   4% /
    /dev/nvme0n1p10   63M  110K   63M   1% /boot/efi
    /dev/sda1        227G   14G  203G   7% /media/ubuntu/d5b6430f-d69d-46ac-9c63-084f926e74dd

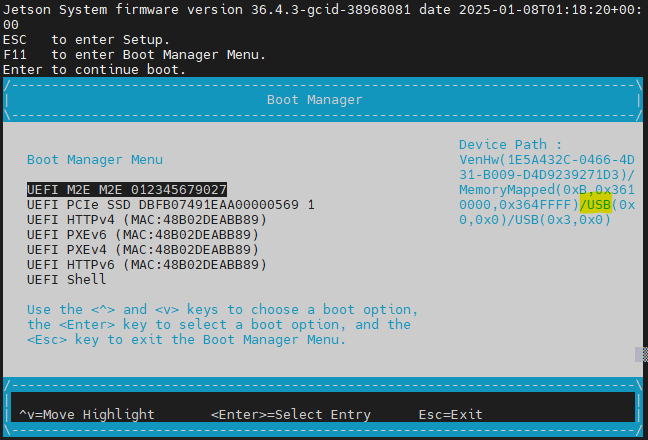

3. Reboot device and choice to USB as boot device.
   When NVIDIA log shown, press ESC to enter UEFI setup.
   Then enter 'Boot Manager', choice USB device.





4. Currently, you should boot from USB.

    $ df -h
    Filesystem      Size  Used Avail Use% Mounted on
    /dev/sda1       227G   14G  203G   7% /
    /dev/sda10       63M  110K   63M   1% /boot/efi

   Check the NVMe still could be recognized.


   $ lsblk /dev/nvme0n1
    nvme0n1      259:0    0 232.9G  0 disk
    ├─nvme0n1p1  259:1    0 231.4G  0 part
    ├─nvme0n1p2  259:2    0   128M  0 part
    ├─nvme0n1p3  259:3    0   768K  0 part
    ├─nvme0n1p4  259:4    0  31.6M  0 part
    ├─nvme0n1p5  259:5    0   128M  0 part
    ├─nvme0n1p6  259:6    0   768K  0 part
    ├─nvme0n1p7  259:7    0  31.6M  0 part
    ├─nvme0n1p8  259:8    0    80M  0 part
    ├─nvme0n1p9  259:9    0   512K  0 part
    ├─nvme0n1p10 259:10   0    64M  0 part
    ├─nvme0n1p11 259:11   0    80M  0 part
    ├─nvme0n1p12 259:12   0   512K  0 part
    ├─nvme0n1p13 259:13   0    64M  0 part
    └─nvme0n1p14 259:14   0 879.5M  0 part

5. On your HostPC, copy demo image files into TEK device.
   Using scp ${file-on-HostPC} ubuntu@${IP}:/home/ubuntu command.
   Please copy both bz2 and bmap file.
   For example:


   scp Product_storage_disk.img.bmap ubuntu@1.2.3.4:/home/ubuntu
   scp Product_storage_disk.img.bz2  ubuntu@1.2.3.4:/home/ubuntu

6. install bmaptool

   sudo add-apt-repository universe
   sudo apt update
   sudo apt install bmap-tools

7. Flash demo image on TEK storage.

   sudo bmaptool copy Product_storage_disk.img.bz2 /dev/nvme0n1

   Waiting for flash completely, and then reboot.

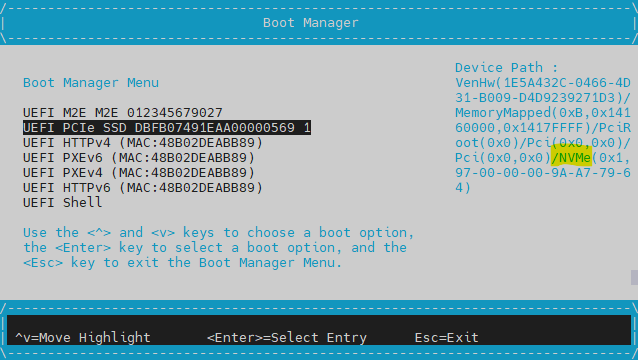

8. Reboot and choice NVMe as boot device.
   Follow step3 to enter boot manager.





Troubleshooting

1. After flash demo image, can't boot up.
   If you update Jetpack version, you also need to update firmware.
   Find matched firmware version from software version table.


2. Is it inconvenient to select the boot device every time?
   You can change boot order on UEFI.
   Or keep only one boot storage and remove others.
