TechNexion Cameras for NEOUSYS NRU-161V-AWP

Instruction

TechNexion Embedded Vision Solutions provide embedded system developers access to high-performance, industrial-grade camera solutions to accelerate their time to market for embedded vision projects.

Supported Camera Modules

Camera Series	Products
VLS-GM2	VLS-GM2-AR0144 VLS-GM2-AR0145 VLS-GM2-AR0234 VLS-GM2-AR0521 VLS-GM2-AR0522 VLS-GM2-AR0821 VLS-GM2-AR0822 VLS-GM2-AR1335

More Camera Products Details...

Supported NVIDIA Jetson Partner Platforms

NEOUSYS NRU-161V-AWP

Install TN Camera on NVIDIA Jetson Partner Platforms

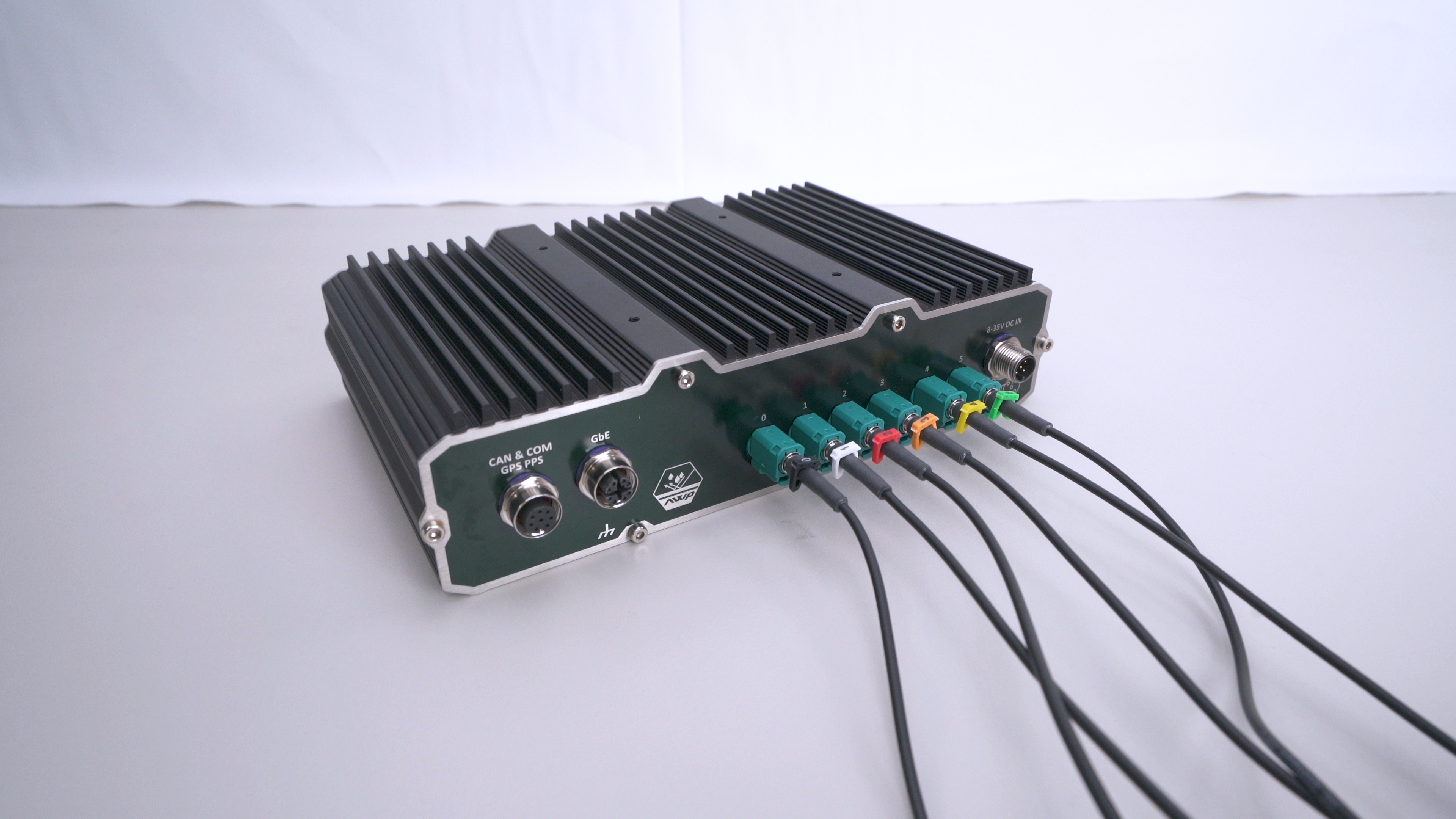

Connect to NVIDIA Jetson Partner Platforms

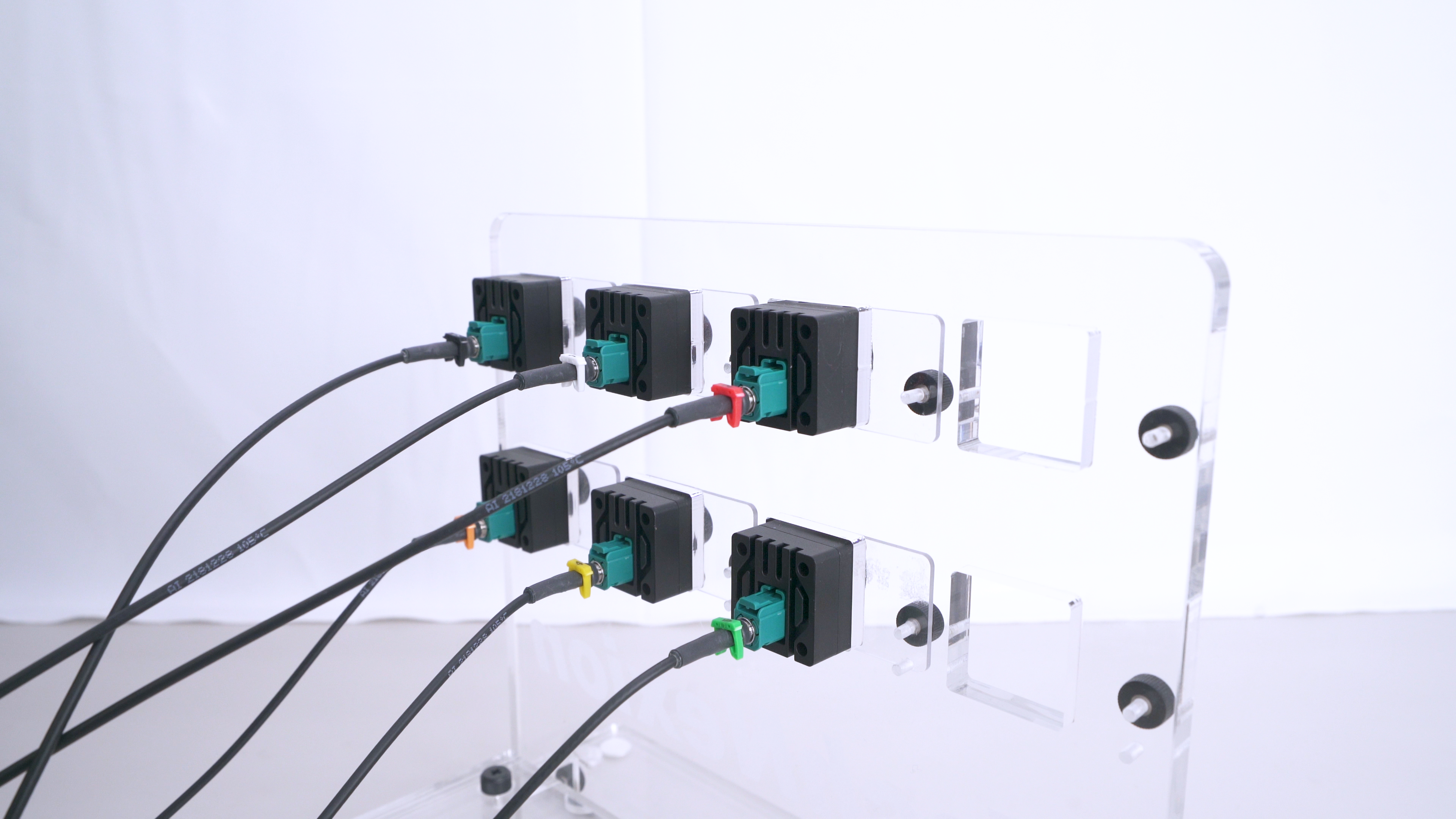

COAX cable for VLS-GM2 Cameras

Follow the video to connect VLS-GM2 cameras to NVIDIA Jetson Partner Platforms.

Using TechNexion Pre-built modules

Preparation

We recommend following the user manual from platform vendors to setup system. After that, you can follow the below method to install TechNexion Cameras Driver.

Download pre-built modules.

$ wget https://download.technexion.com/demo_software/EVK/NVIDIA/NRU-161V-AWP/pre-built-modules/latest/JP60/tn_camera_modules_jp60.tar.gz

Uncompress the modules.
```
$ tar -xf tn_camera_modules_jp60.tar.gz
```

Run installation script.

$ cd tn_camera_modules_<built_time>/
$ ./tn_install.sh

After you agree to continue the installation, the module will be installed to the system.

$ ./tn_install.sh
****** TechNexion Camera Driver Installation ******
This installation is easy to install TechnNexion Camera Drivers for Nvidia
Jetson Orin NX Platform. Before start to install camera driver,
You should BACKUP your image to avoid any file you lost while installing process.
Do you want to continue?[Y/n]y
Continuing with the installation...
Install TN-CAM modules: max9296a.ko
Install TN-CAM modules: max96717.ko
Install TN-CAM modules: tevs.ko
Install TN-CAM DTBO file: vls-gm2
Installed TN-CAM DTB file Done.
Install TN-CAM DTBO file: vls-gm2-fsync
Installed TN-CAM DTB file Done.
Installing configuration: vls-gm2
Add TN-CAM Configuration for modules: vls-gm2
Installing configuration: vls-gm2-fsync
Add TN-CAM Configuration for modules: vls-gm2-fsync
Set Default Configuration for modules: vls-gm2
Install TN-CAM service...
Launch TN-CAM Service...
Finish Camera Driver Installation. Return Code:[0]
You should Reboot Device to enable vls-gm2-fsync Cameras.
Do you want to reboot now?[Y/n]y
Rebooting....

note

You should reboot the device after installation.

Bring up Camera

TechNexion VizionViewer

VizionViewer™

Gstreamer

If you succeed in initialing the camera, you can follow the steps to open the camera.

Check the supported resolutions:

$ gst-device-monitor-1.0 Video/Source
Probing devices...

Device found:

        name  : vi-output, tevs 16-0038
        class : Video/Source
        caps  : video/x-raw, format=UYVY, width=640, height=480, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=720, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=800, framerate=60/1
                video/x-raw, format=NV16, width=640, height=480, framerate=60/1
                video/x-raw, format=NV16, width=1280, height=720, framerate=60/1
                video/x-raw, format=NV16, width=1280, height=800, framerate=60/1
                video/x-raw, format=UYVY, width=640, height=480, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=720, framerate=60/1
                video/x-raw, format=UYVY, width=1280, height=800, framerate=60/1
        properties:
                object.path = v4l2:/dev/video0
                device.api = v4l2
                media.class = Video/Source
                api.v4l2.path = /dev/video0
                api.v4l2.cap.driver = tegra-video
                api.v4l2.cap.card = "vi-output\,\ tevs\ 16-0038"
                api.v4l2.cap.bus_info = platform:tegra-capture-vi:0
                api.v4l2.cap.version = 5.15.136
                api.v4l2.cap.capabilities = 84200001
                api.v4l2.cap.device-caps = 04200001
                device.id = 34
                node.name = v4l2_input.platform-tegra-capture-vi
                node.description = "vi-output\,\ tevs\ 16-0038"
                factory.name = api.v4l2.source
                node.pause-on-idle = false
                factory.id = 10
                client.id = 32
                clock.quantum-limit = 8192
                media.role = Camera
                node.driver = true
                object.id = 35
                object.serial = 35
        gst-launch-1.0 pipewiresrc path=35 ! ...

Bring up the camera (/dev/video0) with 1280x720 by Gstreamer pipeline:

$ DISPLAY=:0 gst-launch-1.0 nvv4l2camerasrc device=/dev/video0 ! \
"video/x-raw(memory:NVMM), format=UYVY, width=1280, height=720" ! \
nvvidconv ! xvimagesink sync=false

Troubleshooting

Cannot find cameras

If you cannot bring up the cameras, you can check if the video device does exist.
```
$ ls /dev/video*  # List all video devices
/dev/video0  /dev/video1
```
If you cannot see the devices, you should check if the drivers have been probed.

Occur Error: Could not get EGL display connection

If you occurred the errors nvbufsurftransform: Could not get EGL display connection by rununing the Gstreamer command, you can modify the parameter DISPLAY by the command:

# Check and Set environment parameter for 'DISPLAY'
$ export DISPLAY=$(w| tr -s ' '| cut -d ' ' -f 3 | grep :)

# Run Gstreamer pipeline
$ gst-launch-1.0 v4l2src device=/dev/video0 ! \
"video/x-raw, format=UYVY, width=1280, height=720" ! xvimagesink sync=false
