NXP FRDM i.MX 93 Board TEVS Camera Usage Guide

🚀 Introduction

This article guides you on how to get started using TechNexion camera modules on the NXP FRDM i.MX 93 board.

📸 Supported Camera Modules

Camera Series	Products
TEVS	TEVS-AR0144 TEVS-AR0145 TEVS-AR0234 TEVS-AR0521 TEVS-AR0522 TEVS-AR0821 TEVS-AR0822 TEVS-AR1335

🔧 Hardware Setup Instructions

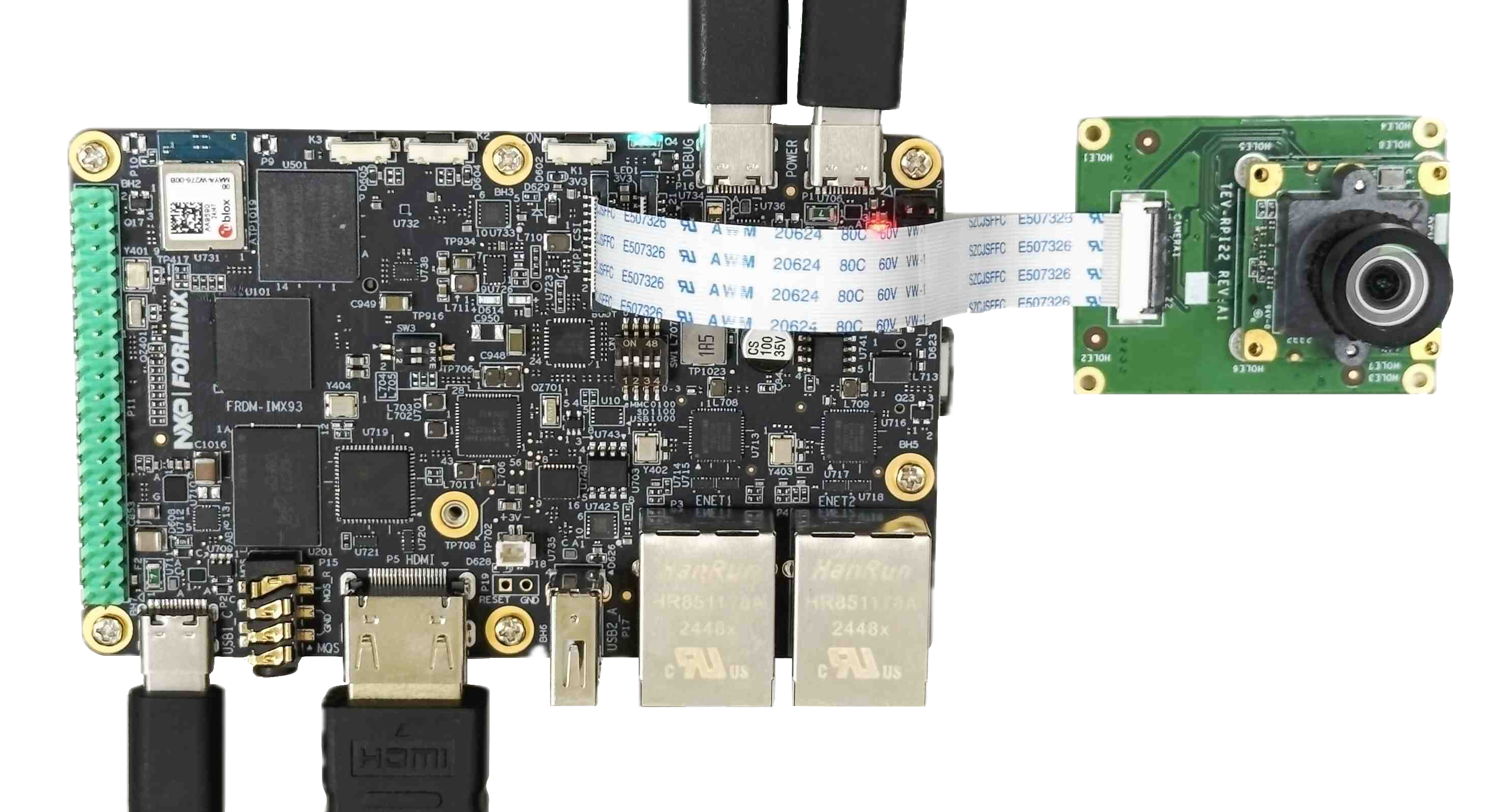

Connect the Adapter Board and Camera Cable

To set up the TechNexion camera, connect the adapter board and camera cable to the FPC 22-Pin connector on the board as shown in the image below.

warning

The RPI 22-pin connector on the adapter board has two directions. Please make sure the pin definition matches the adapter board.

🧰 Camera Installation Instructions

We provide two methods to install camera drivers and device tree blobs. Depending on your needs, you can choose the most suitable method. If you are new to this, we recommend starting with Method 1. If you have a custom Linux kernel and device tree, you can try Method 2.

Method 1 - Using TechNexion Pre-built image

Prepare Yocto demo image for testing TechNexion camera

To test TechNexion TEVS Series cameras, you need a demo image that includes the required Device Tree Blobs (DTBs) and camera drivers. Pre-built demo images are available for download from TechNexion's server.

Download Link:

🔗 Supported Release List (Instructions for IMX93-FRDM)

Flashing the Image

You can flash the image to an SD Card using the following methods:

Boot Mode

Make sure your board is set to boot from SD card or eMMC.
Refer to the official NXP guide 🔗 Getting Started with the FRDM-IMX93

For Windows Users
For Linux Users

Use balenaEtcher to write the image to your SD card:

🔗

Execute the following command to copy the SD card image to the SD/MMC card. Change sdx below to match the device used by your SD card.

$ zip -d <image name>.zip
$ sudo dd if=<image name>.img of=/dev/sdx bs=1M && sync

Method 2 - Build custom Linux kernel with camera driver

Download the camera driver and device tree blobs.

$ git clone https://github.com/TechNexion-Vision/nxp_evk_camera.git -b tn-imx_6.12.20_2.0.0-stable

Copy files to your kernel source code.

$ cd nxp_evk_camera/

~/nxp_evk_camera$ cp arch/arm64/boot/dts/freescale/imx93-11x11-frdm-tevs-rpi22.dtso <fetch_kernel_folder>/arch/arm64/boot/dts/freescale/

Modify the Makefile to add the driver.

$ cd <fetch_kernel_folder>/drivers/media/i2c/
~/<fetch_kernel_folder>/drivers/media/i2c/$ vi Makefile

Add this line to the Makefile.

obj-$(CONFIG_VIDEO_TEVS) += tevs/

info

You can refer to linux-tn-imx/drivers/media/i2c/Makefile

Modify Kconfig to add camera configuration.

~/<fetch_kernel_folder>/drivers/media/i2c/$ vi Kconfig

Add this part under "Camera sensor devices" menu in Kconfig.

config VIDEO_TEVS
  tristate "TechNexion TEVS sensor support"
  depends on OF
  depends on GPIOLIB && I2C && VIDEO_V4L2_SUBDEV_API
  depends on MEDIA_CAMERA_SUPPORT
  select V4L2_FWNODE
  default y
  help
    This is a Video4Linux2 sensor driver for the TechNexion
    TEVS camera sensor with a MIPI CSI-2 interface.

Build Environment

You can refer to linux-tn-imx/drivers/media/i2c/Kconfig

Modify the Makefile to add the device tree.

$ cd <fetch_kernel_folder>/arch/arm64/boot/dts/freescale/
~/<fetch_kernel_folder>/arch/arm64/boot/dts/freescale/$ vi Makefile

Add these lines to the Makefile.

imx93-11x11-frdm-tevs-rpi22-dtbs := imx93-11x11-frdm.dtb imx93-11x11-frdm-tevs-rpi22.dtbo
dtb-$(CONFIG_ARCH_MXC) += imx93-11x11-frdm-tevs-rpi22.dtb

Build Environment

You can refer to linux-tn-imx/arch/arm64/boot/dts/freescale/Makefile

Compile the kernel and module driver.

Finally, you can start compiling your new Image files, then copy and replace the Image files on the SD card.

📸 Camera Testing Instructions

Specify Camera DTBO in U-Boot

Connect the debug console cable to the baseboard (via USB-C).
Power on the board and interrupt the boot process. Keep pressing Enter when the following message appears: Hit any key to stop autoboot:
Specify the appropriate device tree for your camera using the fdtfile environment variable in U-Boot:

u-boot=> setenv fdtfile imx93-11x11-frdm-tevs-rpi22.dtb

Save and continue the boot process:

u-boot=> saveenv
u-boot=> boot

🎛️ Setup the media controller before camera streaming

To verify that the camera has been properly connected and linked, use the media-ctl command:

$ media-ctl -p

This will display media controller information, such as:

Media controller API version 6.12.34

Media device information
------------------------
driver          mxc-isi
model           FSL Capture Media Device
serial
bus info        platform:4ae40000.isi
hw revision     0x0
driver version  6.12.34

Device topology
- entity 1: crossbar (3 pads, 3 links, 0 routes)
            type V4L2 subdev subtype Unknown flags 0
            device node name /dev/v4l-subdev0
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1920x1080 field:none colorspace:srgb xfer:srgb ycbcr:601 quantization:lim-range]
                <- "csidev-4ae00000.csi":1 [ENABLED,IMMUTABLE]
        pad1: Sink
                <- "mxc_isi.output":0 [ENABLED,IMMUTABLE]
        pad2: Source
                [stream:0 fmt:UYVY8_1X16/1920x1080 field:none colorspace:srgb xfer:srgb ycbcr:601 quantization:lim-range]
                -> "mxc_isi.0":0 [ENABLED,IMMUTABLE]

- entity 5: mxc_isi.0 (2 pads, 2 links, 0 routes)
            type V4L2 subdev subtype Unknown flags 0
            device node name /dev/v4l-subdev1
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1920x1080 field:none colorspace:jpeg xfer:srgb ycbcr:601 quantization:full-range
                 compose.bounds:(0,0)/1920x1080
                 compose:(0,0)/1920x1080]
                <- "crossbar":2 [ENABLED,IMMUTABLE]
        pad1: Source
                [stream:0 fmt:YUV8_1X24/1920x1080 field:none colorspace:jpeg xfer:srgb ycbcr:601 quantization:full-range
                 crop.bounds:(0,0)/1920x1080
                 crop:(0,0)/1920x1080]
                -> "mxc_isi.0.capture":0 [ENABLED,IMMUTABLE]

- entity 8: mxc_isi.0.capture (1 pad, 1 link)
            type Node subtype V4L flags 0
            device node name /dev/video0
        pad0: Sink
                <- "mxc_isi.0":1 [ENABLED,IMMUTABLE]

- entity 16: mxc_isi.output (1 pad, 1 link)
             type Node subtype V4L flags 0
        pad0: Source
                -> "crossbar":1 [ENABLED,IMMUTABLE]

- entity 23: csidev-4ae00000.csi (2 pads, 2 links, 0 routes)
             type V4L2 subdev subtype Unknown flags 0
             device node name /dev/v4l-subdev2
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1920x1080 field:none colorspace:smpte170m xfer:709 ycbcr:601 quantization:lim-range]
                <- "tevs 2-0048":0 []
        pad1: Source
                [stream:0 fmt:UYVY8_1X16/1920x1080 field:none colorspace:smpte170m xfer:709 ycbcr:601 quantization:lim-range]
                -> "crossbar":0 [ENABLED,IMMUTABLE]

- entity 28: tevs 2-0048 (1 pad, 1 link, 0 routes)
             type V4L2 subdev subtype Sensor flags 0
             device node name /dev/v4l-subdev3
        pad0: Source
                [stream:0 fmt:UYVY8_1X16/640x480@1/60 field:none colorspace:srgb xfer:srgb ycbcr:601 quantization:full-range
                 crop.bounds:(0,0)/640x480
                 crop:(0,0)/640x480]
                -> "csidev-4ae00000.csi":0 []

Showing the output as an image can make it easier to understand.

note

If you want to see the graph, you can use the --print-dot option.

$ media-ctl --print-dot > graph.dot
$ dot -Tpng graph.dot > graph.png
# If you don't have the tool, you need to install it as follows.
# sudo apt-get install -y graphviz.

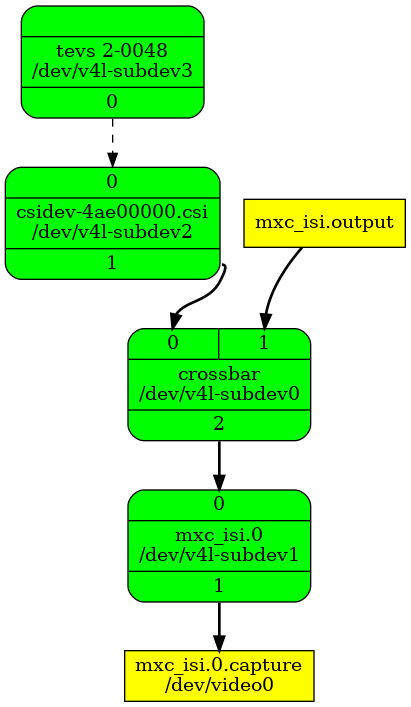

We can observe that the link between ‘tevs 2-0048 ’ to ‘csidev-4ae00000.csi ’ is a dotted line. This means it's not available.

You need to enable the link between the TEVS and CSI device.

$ media-ctl -l "'tevs 2-0048':0 -> 'csidev-4ae00000.csi':0 [1]"

Set the resolution and format of all media entities to match the camera's output. This means all components in the media pipeline must align with the camera's output settings.

Use the v4l2-ctl command to check the camera's supported formats, resolutions, and frame intervals.

# formats
$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-mbus-codes
  ioctl: VIDIOC_SUBDEV_ENUM_MBUS_CODE (pad=0,stream=0)
          0x200f: MEDIA_BUS_FMT_UYVY8_1X16
          0x300a: MEDIA_BUS_FMT_SGRBG10_1X10
          0x3011: MEDIA_BUS_FMT_SGRBG12_1X12

# resolutions
$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-framesize code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_SIZE (pad=0,stream=0)
          Size Range: 640x480 - 640x480
          Size Range: 1280x720 - 1280x720
          Size Range: 1280x960 - 1280x960
          Size Range: 1920x1080 - 1920x1080
          Size Range: 2560x1440 - 2560x1440
          Size Range: 2592x1944 - 2592x1944

# frame interval of resolution
$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=640,height=480,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.008s (120.000 fps)

$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=1280,height=720,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.017s (60.000 fps)

$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=1280,height=960,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.017s (60.000 fps)

$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=1920,height=1080,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.017s (60.000 fps)

$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=2560,height=1440,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.031s (32.000 fps)

$ v4l2-ctl -d /dev/v4l-subdev3 --list-subdev-frameintervals width=2592,height=1944,code=0x200f
  ioctl: VIDIOC_SUBDEV_ENUM_FRAME_INTERVAL (pad=0,stream=0)
          Interval: 0.042s (24.000 fps)

Set resolution to 1280×720 for example.

Command Line
Script

$ media-ctl -V "'crossbar':0 [fmt:UYVY8_1X16/1280x720 field:none colorspace:srgb xfer:srgb ycbcr:601]"
$ media-ctl -V "'mxc_isi.0':0 [fmt:UYVY8_1X16/1280x720 field:none colorspace:srgb xfer:srgb ycbcr:601]"
$ media-ctl -V "'csidev-4ae00000.csi':0 [fmt:UYVY8_1X16/1280x720 field:none colorspace:srgb xfer:srgb ycbcr:601]"
$ media-ctl -V "'tevs 2-0048':0 [fmt:UYVY8_1X16/1280x720 field:none colorspace:srgb xfer:srgb ycbcr:601]"

#!/bin/bash

# Define the format and resolution as a variable
mdev="/dev/media0"
mediactl="media-ctl -d $mdev"
cam="tevs 2-0048"
csi="csidev-4ae00000.csi"
isi="mxc_isi.0"
code="UYVY8_1X16"
width="1280"
height="720"
format="fmt:${code}/${width}x${height} field:none"

# Function to run media-ctl commands with error handling
echo "Reset media controller..."
$mediactl -r
echo "Set media controller..."
$mediactl -l "\"$cam\":0 -> \"$csi\":0 [1]"
$mediactl -V "\"$cam\":0 [$format]"
$mediactl -V "\"$csi\":0/0 [$format]"
$mediactl -V "\"crossbar\":0 [$format]"
$mediactl -V "\"$isi\":0 [$format]"

tip

This script includes enabling the link between the TEVS and CSI device.

If using pre-built image, you can find the script in /root/media-config-set.sh.

🎥 Start Camera Video Stream via GStreamer

🎬 Launch GStreamer Pipeline

Specify the capture device you just obtained and start GStreamer to get the video stream on screen.
Replace <res_w> and <res_h> with your selected resolution and screen dimensions:

$ gst-launch-1.0 v4l2src device=/dev/video0 ! \
  "video/x-raw, format=YUY2, width=<res_w>, height=<res_h>" ! \
  waylandsink sync=false

✅ Check Media Controller

We can use media-ctl -p to check the media controller again after setting the resolution and media link as shown below:

Media controller API version 6.12.34

Media device information
------------------------
driver          mxc-isi
model           FSL Capture Media Device
serial
bus info        platform:4ae40000.isi
hw revision     0x0
driver version  6.12.34

Device topology
- entity 1: crossbar (3 pads, 3 links, 0 routes)
            type V4L2 subdev subtype Unknown flags 0
            device node name /dev/v4l-subdev0
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1280x720 field:none]
                <- "csidev-4ae00000.csi":1 [ENABLED,IMMUTABLE]
        pad1: Sink
                <- "mxc_isi.output":0 [ENABLED,IMMUTABLE]
        pad2: Source
                [stream:0 fmt:UYVY8_1X16/1280x720 field:none]
                -> "mxc_isi.0":0 [ENABLED,IMMUTABLE]

- entity 5: mxc_isi.0 (2 pads, 2 links, 0 routes)
            type V4L2 subdev subtype Unknown flags 0
            device node name /dev/v4l-subdev1
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1280x720 field:none
                 compose.bounds:(0,0)/1280x720
                 compose:(0,0)/1280x720]
                <- "crossbar":2 [ENABLED,IMMUTABLE]
        pad1: Source
                [stream:0 fmt:YUV8_1X24/1280x720 field:none colorspace:jpeg xfer:srgb ycbcr:601 quantization:full-range
                 crop.bounds:(0,0)/1280x720
                 crop:(0,0)/1280x720]
                -> "mxc_isi.0.capture":0 [ENABLED,IMMUTABLE]

- entity 8: mxc_isi.0.capture (1 pad, 1 link)
            type Node subtype V4L flags 0
            device node name /dev/video0
        pad0: Sink
                <- "mxc_isi.0":1 [ENABLED,IMMUTABLE]

- entity 16: mxc_isi.output (1 pad, 1 link)
             type Node subtype V4L flags 0
        pad0: Source
                -> "crossbar":1 [ENABLED,IMMUTABLE]

- entity 23: csidev-4ae00000.csi (2 pads, 2 links, 0 routes)
             type V4L2 subdev subtype Unknown flags 0
             device node name /dev/v4l-subdev2
        pad0: Sink
                [stream:0 fmt:UYVY8_1X16/1280x720 field:none]
                <- "tevs 2-0048":0 [ENABLED]
        pad1: Source
                [stream:0 fmt:UYVY8_1X16/1280x720 field:none]
                -> "crossbar":0 [ENABLED,IMMUTABLE]

- entity 28: tevs 2-0048 (1 pad, 1 link, 0 routes)
             type V4L2 subdev subtype Sensor flags 0
             device node name /dev/v4l-subdev3
        pad0: Source
                [stream:0 fmt:UYVY8_1X16/1280x720@1/60 field:none colorspace:srgb xfer:srgb ycbcr:601 quantization:full-range
                 crop.bounds:(0,0)/1280x720
                 crop:(0,0)/1280x720]
                -> "csidev-4ae00000.csi":0 [ENABLED]

🚨 Troubleshooting

Verify Camera Initialization

Use dmesg to check if the TEVS camera module was initialized correctly.

  $ dmesg -t | grep tevs
   /soc@0/bus@42000000/i2c@42530000/tevs@48: Fixed dependency cycle(s) with /soc@0/bus@42800000/csi@4ae00000
   /soc@0/bus@42800000/csi@4ae00000: Fixed dependency cycle(s) with /soc@0/bus@42000000/i2c@42530000/tevs@48
   /soc@0/bus@42000000/i2c@42530000/tevs@48: Fixed dependency cycle(s) with /soc@0/bus@42800000/csi@4ae00000
   /soc@0/bus@42000000/i2c@42530000/tevs@48: Fixed dependency cycle(s) with /soc@0/bus@42800000/csi@4ae00000
   /soc@0/bus@42800000/csi@4ae00000: Fixed dependency cycle(s) with /soc@0/bus@42000000/i2c@42530000/tevs@48
   /soc@0/bus@42000000/i2c@42530000/tevs@48: Fixed dependency cycle(s) with /soc@0/bus@42800000/csi@4ae00000
   /soc@0/bus@42800000/csi@4ae00000: Fixed dependency cycle(s) with /soc@0/bus@42000000/i2c@42530000/tevs@48
   /soc@0/bus@42800000/csi@4ae00000: Fixed dependency cycle(s) with /soc@0/bus@42000000/i2c@42530000/tevs@48
   /soc@0/bus@42000000/i2c@42530000/tevs@48: Fixed dependency cycle(s) with /soc@0/bus@42800000/csi@4ae00000
   tevs 2-0048: tevs_probe() device node: tevs@48
   tevs 2-0048: Version:25.3.0.2
   tevs 2-0048: Product:TEVS-AR0144, HeaderVer:3, MIPI_Rate:800
   tevs 2-0048: Chip ID: 0x0000
   tevs 2-0048: probe success

Confirm Board and Camera DTB

Check if the correct DTB is loaded with a matching camera model.

  $ dmesg -t | grep -i model
    Machine model: NXP FRDM-IMX93

Check Available Video Devices

Verify that the video devices are available.

  $ v4l2-ctl --list-device

Example output:

mxc-isi-cap (platform:4ae40000.isi):
    /dev/video0
    /dev/video1
    /dev/media0

🚀 Introduction​

📸 Supported Camera Modules​

🔧 Hardware Setup Instructions​

Connect the Adapter Board and Camera Cable​

🧰 Camera Installation Instructions​

Method 1 - Using TechNexion Pre-built image​

Prepare Yocto demo image for testing TechNexion camera​

Download Link:​

Flashing the Image​

Method 2 - Build custom Linux kernel with camera driver​

📸 Camera Testing Instructions​

Specify Camera DTBO in U-Boot​

🎛️ Setup the media controller before camera streaming​

🎥 Start Camera Video Stream via GStreamer​

🎬 Launch GStreamer Pipeline​

✅ Check Media Controller​

🚨 Troubleshooting​

Verify Camera Initialization​

Confirm Board and Camera DTB​

Check Available Video Devices​
